Redhat 6.2 x86_64安装Oracle 11g R2

操作系统:Red Hat Enterprise Linux Server release 6.2 x86_64

Oracle版本:Oracle Database 11g Release 2

Oracle官方下载地址:

File1:http://download.oracle.com/otn/linux/oracle11g/R2/linux.x64_11gR2_database_1of2.zip

File2:http://download.oracle.com/otn/linux/oracle11g/R2/linux.x64_11gR2_database_2of2.zip

Oracle11gR2官方文档地址:http://docs.oracle.com/cd/E11882_01/install.112/e24326/toc.htm#CEGHFFGG

使用到的工具:

SecureCRT

VNC-Viewer-5.1.1-Windows-64bit.exe(http://www.realvnc.com/download/viewer/)

服务器IP:192.168.109.129

硬件要求:

官方要求内存至少1GB,推荐2GB或更多。

官方给的物理内存和Swap交换空间的关系表:

Available RAM Swap Space Required
Between 1 GB and 2 GB 1.5 times the size of the RAM
Between 2 GB and 16 GB Equal to the size of the RAM
More than 16 GB 16 GB

检查本机内存:

[root@localhost ~]# grep MemTotal /proc/meminfo
MemTotal:        1164632 kB
[root@localhost ~]# grep SwapTotal /proc/meminfo
SwapTotal:       2097144 kB
[root@localhost ~]# free -m
             total       used       free     shared    buffers     cached
Mem:          1137       1026        111          0         18        430
-/+ buffers/cache:        576        560
Swap:         2047        190       1857

查看本机系统架构:

[root@localhost ~]# uname -m
x86_64

磁盘空间要求:

官方要求/tmp空间至少要1GB

[root@localhost ~]# df -h /tmp/
Filesystem            Size  Used Avail Use% Mounted on
/dev/sda3              38G   14G   22G  39% /

检查软件环境:

支持的系统(只选取redhat):

Red Hat Enterprise Linux 6

Red Hat Enterprise Linux 6

Red Hat Enterprise Linux 6 (with the Oracle Unbreakable Enterprise Kernel for Linux)

内核要求:

·        On Red Hat Enterprise Linux 6

        2.6.32-71.el6.x86_64 or later

·        On Red Hat Enterprise Linux 6with Unbreakable Enterprise Kernel

        2.6.32-100.28.5.el6.x86_64 or later


查看本机内核版本:

[root@localhost ~]# uname -r
2.6.32-220.el6.x86_64

官方要求需要安装的软件包:

  • The following or later version of packages for Oracle Linux 6, and Red Hat Enterprise Linux 6 must be installed:

    binutils-2.20.51.0.2-5.11.el6 (x86_64)
    compat-libcap1-1.10-1 (x86_64)
    compat-libstdc++-33-3.2.3-69.el6 (x86_64)
    compat-libstdc++-33-3.2.3-69.el6.i686
    gcc-4.4.4-13.el6 (x86_64)
    gcc-c++-4.4.4-13.el6 (x86_64)
    glibc-2.12-1.7.el6 (i686)
    glibc-2.12-1.7.el6 (x86_64)
    glibc-devel-2.12-1.7.el6 (x86_64)
    glibc-devel-2.12-1.7.el6.i686
    ksh
    libgcc-4.4.4-13.el6 (i686)
    libgcc-4.4.4-13.el6 (x86_64)
    libstdc++-4.4.4-13.el6 (x86_64)
    libstdc++-4.4.4-13.el6.i686
    libstdc++-devel-4.4.4-13.el6 (x86_64)
    libstdc++-devel-4.4.4-13.el6.i686
    libaio-0.3.107-10.el6 (x86_64)
    libaio-0.3.107-10.el6.i686
    libaio-devel-0.3.107-10.el6 (x86_64)
    libaio-devel-0.3.107-10.el6.i686
    make-3.81-19.el6
    sysstat-9.0.4-11.el6 (x86_64)

Oracle ODBC Driver:

On Oracle Linux 6 and Red Hat Enterprise Linux 6:
unixODBC-2.2.14-11.el6 (x86_64) or later
unixODBC-2.2.14-11.el6.i686 or later
unixODBC-devel-2.2.14-11.el6 (x86_64) or later
unixODBC-devel-2.2.14-11.el6.i686 or later


检查并安装所要求的软件包:

由于所需安装的包既有32位,又有64位,所以就一个个检查安装。

检查使用rpm -q packgename  (不看版本号)

安装使用rpm -ivh packge_full_name

我这里已经使用系统盘做好了本地yum源,由于使用rpm -ivh packge_full_name安装时可能会存在依赖包,所以直接使用yum安装的方式来安装,如下:

系统挂在在/iso目录下:

[root@localhost ~]# cd /iso/Packages/
[root@localhost Packages]# yum -y install binutils-2.20.51.0.2-5.28.el6.x86_64.rpm

这样有依赖包便会自动安装,已经装了的话,直接跳过就ok,注意,务必一个个安装,避免遗失包,后米安装时报错。

创建所需的用户和组:

[root@localhost ~]# groupadd oinstall
[root@localhost ~]# groupadd dba
[root@localhost ~]# useradd -g oinstall -Gdba oracle
[root@localhost ~]# id oracle
uid=500(oracle) gid=500(oinstall)groups=500(oinstall),501(dba)
[root@localhost ~]# passwd oracle
Changing password for user oracle.
New password:
BAD PASSWORD: it is toosimplistic/systematic
BAD PASSWORD: is too simple
Retype new password:
passwd: all authentication tokens updatedsuccessfully.

配置内核参数:
官方要求的:

查看方法:

/etc/sysctl.conf文件中添加以下:

fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152    #此行不加
kernel.shmmax = 536870912  #此行不加
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576

生效:

[root@localhost ~]# /sbin/sysctl -p

确认值被正确设置:

[root@localhost ~]# /sbin/sysctl -a

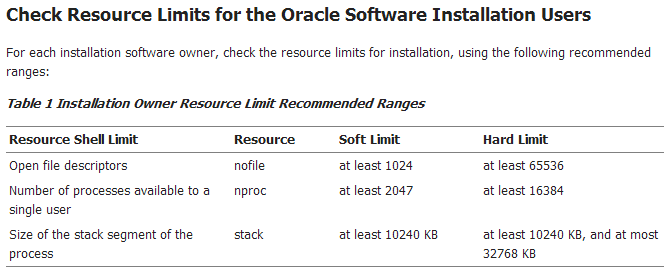

oracle用户下检查设置Resource Limits

To create the Oracle base directory:

  1. Enter the following command to display information about all mounted file systems:

    # df -k

    This command displays information about all the file systems mounted on the system, including:

  • The physical device name

  • The total amount, used amount, and available amount of disk space

  • The mount point directory for that file system

  • From the display, identify either one or two file systems that meet the disk space requirements mentioned earlier in this section.

  • Note the name of the mount point directory for each file system that you identified.

  • Enter commands similar to the following to create the recommended subdirectories in the mount point directory that you identified and set the appropriate owner, group, and permissions on them:

    # mkdir -p /mount_point/app/
    # chown -R oracle:oinstall /mount_point/app/
    # chmod -R 775 /mount_point/app/

    For example:

    # mkdir -p /u01/app/
    # chown -R oracle:oinstall /u01/app/
    # chmod -R 775 /u01/app/
  • [root@localhost ~]# vim /etc/security/limits.conf

    添加以下:

    oracle  soft    nproc   2047
    oracle  hard    nproc   16384
    oracle  soft    nofile  1024
    oracle  hard    nofile  65536

    创建所需目录:

    [root@localhost ~]# mkdir -p /oracle/app
    [root@localhost ~]# chown -Roracle:oinstall /oracle/app/
    [root@localhost ~]# chmod -R 775/oracle/app/

    配置oracle用户的环境变量:

    [root@localhost ~]# su - oracle
    [oracle@localhost ~]$ vim .bash_profile
    添加以下:(红色部分):
    # .bash_profile

    # Get the aliases and functions
    if [ -f ~/.bashrc ]; then
           . ~/.bashrc
    fi

    # User specific environment and startupprograms

    PATH=$PATH:$HOME/bina
    ORACLE_BASE=/oracle/app/oracle
    ORACLE_SID=orcl

    export PATH ORACLE_BASEORACLE_SID

    开始安装:

    上传安装文件linux.x64_11gR2_database_1of2.ziplinux.x64_11gR2_database_2of2.zip/目录

    使用root用户解压:

    [root@localhost/]# unzip linux.x64_11gR2_database_1of2.zip
    [root@localhost/]# unzip linux.x64_11gR2_database_2of2.zip

    ok,安装前工作完成,为确保所有设置都神效,最好重启一下机器。

    # reboot


    重启后,进入图形界面,终端下执行:

    [root@test~]# xhost +
    [root@test~]# su - oracle
    [oracle@test~]$ cd /database/

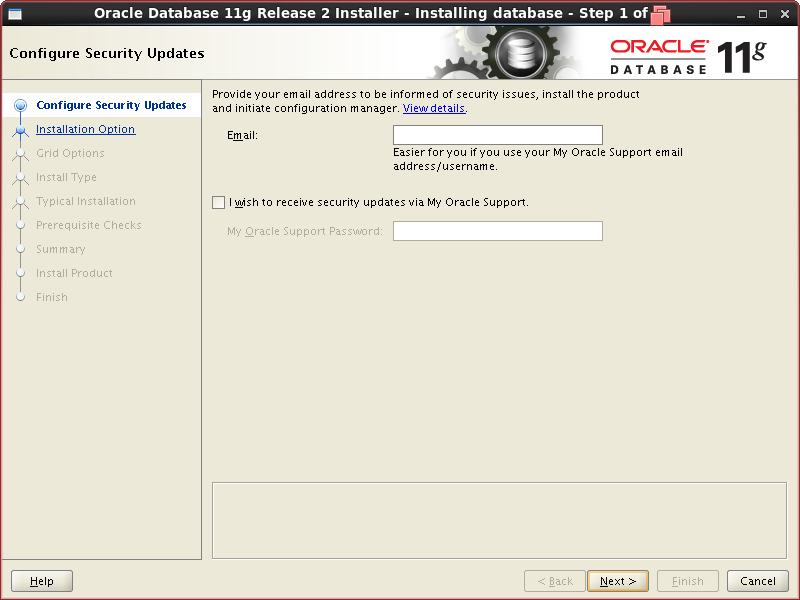

    [oracle@testdatabase]$ ./runInstaller


    未完,待续…
