CentOS 6.5 安装nagios监控

Nagios是一款开源的免费网络监视工具,能有效监控Windows、Linux和Unix的主机状态,交换机路由器等网络设置,打印机等。在系统或服务状态异常时发出邮件或短信报警第一时间通知网站运维人员,在状态恢复后发出正常的邮件或短信通知。

nagios官方网站:http://www.nagios.org/

关于nagios的安装官网有文档已经说的比较清楚了http://nagios.sourceforge.net/docs/3_0/quickstart-fedora.html

我这里安装的均为当前最新的稳定版本:

nagios-4.0.8

nagios-plugins-2.0.3

安装如下:

安装前准备工作

使用root用户操作服务器,需要以下软件环境:

Apache

PHP

DCC编译器

GD开发库

可通过yum进行安装:

yum install httpd php

yum install gcc glibc glibc-common

yum install gd gd-devel

1. 创建用户和用户组

useradd -m nagios

passwd nagios

Create a new nagcmd group for allowing external commands to be submitted through the web interface. Add both the nagios user and the apache user to the group.

/usr/sbin/groupadd nagcmd

/usr/sbin/usermod -a -G nagcmd nagios

/usr/sbin/usermod -a -G nagcmd apache

2. 下载Nagios和Nagios插件

创建文件夹/software 将下载的文件放到/software目录下

官网下载:http://www.nagios.org/download

本地下载:

nagios-4.0.8.tar.gz

nagios-plugins-2.0.3.tar.gz

3. 编译安装nagios

# cd /software

# tar -zxvf nagios-4.0.8.tar.gz

# cd nagios-4.0.8

Run the Nagios configure script, passing the name of the group you created earlier like so:

./configure --with-command-group=nagcmd

Compile the Nagios source code.

make all

Install binaries, init script, sample config files and set permissions on the external command directory.

make install

make install-init

make install-config

make install-commandmode

Don't start Nagios yet - there's still more that needs to be done... 4.  Customize Configuration

Sample configuration files have now been installed in the /usr/local/nagios/etc directory. These sample files should work fine for getting started with Nagios. You'll need to make just one change before you proceed...

Edit the /usr/local/nagios/etc/objects/contacts.cfg config file with your favorite editor and change the email address associated with the nagiosadmin contact definition to the address you'd like to use for receiving alerts.

vi /usr/local/nagios/etc/objects/contacts.cfg

5. Configure the Web Interface

Install the Nagios web config file in the Apache conf.d directory.

make install-webconf

Create a nagiosadmin account for logging into the Nagios web interface. Remember the password you assign to this account - you'll need it later.

htpasswd -c /usr/local/nagios/etc/htpasswd.users nagiosadmin                //这里我将密码设为123456

Restart Apache to make the new settings take effect.

service httpd restart

 Note: Consider implementing the ehanced CGI security measures described here to ensure that your web authentication credentials are not compromised. 6. 安装nagios插件

cd /software

tar -zxvf nagios-plugins-2.0.3.tar.gz

cd nagios-plugins-2.0.3

./configure --with-nagios-user=nagios --with-nagios-group=nagios

make

make install

7. 启动nagios

将nagios加入开机启动

chkconfig --add nagios

chkconfig nagios on

验证nagios配置文件是否有错:

/usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg

如果没有错误,则启动nagios:

service nagios start

8. 关闭selinux

vim /etc/selinux/config

将SELINUX=enforcing  改为  SELINUX=disabled

修改后需重启系统生效。

临时生效:

# setenforce 0

9. 在浏览器中登录

用户名为nagiosadmin 密码为刚才配置的123456

http://localhost/nagios/

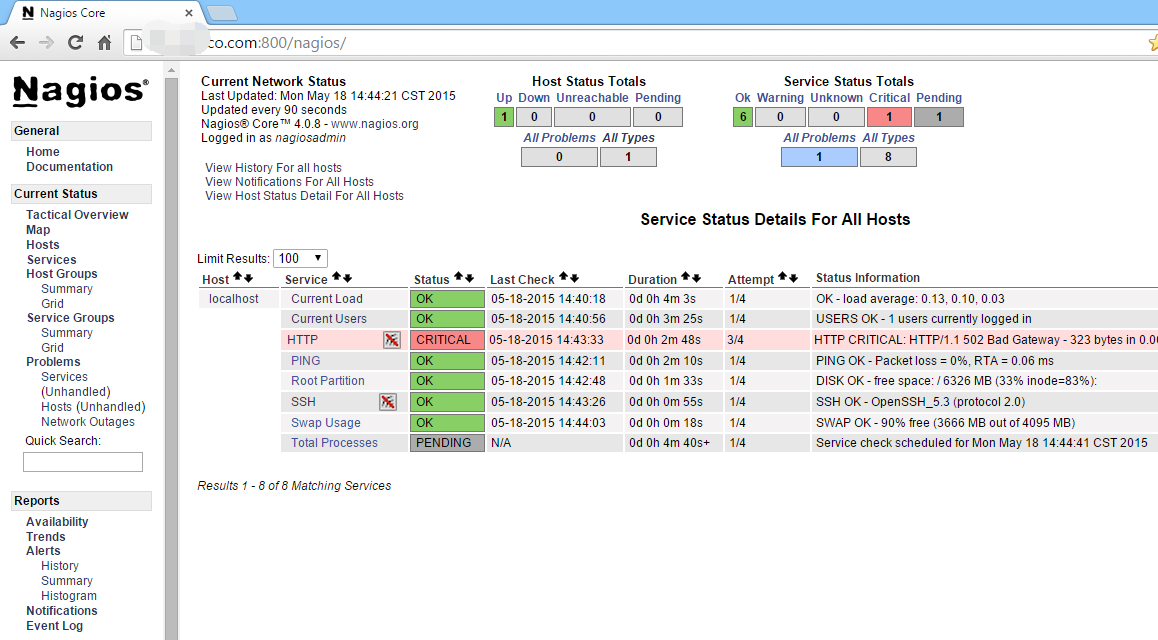

我这里吧默认80端口改成了800了,如下图:


当前系统默认监控的本机的项目:


10. nagios配置文件说明

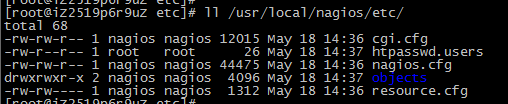

nagios安装完成后主目录为/usr/local/nagios 所有的配置文件在/usr/local/nagios/etc目录下:


cgi.cfg

htpasswd.users        //用于web端登录时的验证,上文中添加的

nagios.cfg          //nagios主配置文件,如果监控其他主机,需要在里面添加其他主机的配置文件

resource.cfg        //定义了nagios插件的位置

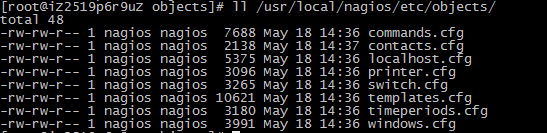

其中objects目录也是非常重要的目录,绝大部分操作都会在这里进行,他的默认文件有:


commands.cfg    //命令定义文件,其中的命令可被其他配置文件引用

contacts.cfg    //定义联系人和联系人组的文件

localhost.cfg    //监控本机的文件

printer.cfg    //监控打印机的模板文件,默认没有启用

switch.cfg     //监控路由器的模板文件,默认没有启用

templates.cfg    //定义主机和服务的模板配置文件,可在其他配置文件中引用

timeperiods.cfg    //定义nagios监控时间段的配置文件

windows.cfg    //监控windows主机的配置文件,默认没有启用

监控本机:

在/usr/local/nagios/etc/nagios.cfg中加入本机的监控,默认已经添加:

cfg_file=/usr/local/nagios/etc/objects/localhost.cfg

本机配置文件默认监控了8项服务Current load,Current Users,HTTP,PING,Root Partition,SSH,Swap Usage,Total Processes

添加一个对本机/data分区的监控:

vim localhost.cfg

在后面添加

define service{

        use                             local-service

        host_name                       localhost

        service_description             Data Partition

        check_command                   check_local_disk!20%!10%!/data

        notifications_enabled           1

        }

保存重启nagios服务,登录web即可看到。

Nagios发送邮件的设置:

参照:http://xiaosa.blog.51cto.com/665033/381310/

下载sendmail http://caspian.dotconf.net/menu/Software/SendEmail/

本地下载:sendEmail-v1.56.tar.gz

cd /usr/local/

tar -zxvf sendEmail-v1.56.tar.gz

复制执行程序 cp sendEmail-v1.56/sendEmail /usr/local/bin/

发件测试:

# sendEmail -f nagios@domain.com -t 7344506@qq.com -s mail.domain.com -u "This is subject" -xu nagios -xp passpwd -m This is content.

解释:

-f 表示发送者的邮箱

-t 表示接收者的邮箱

-s 表示SMTP服务器的域名或者ip

-u 表示邮件的主题

-xu 表示SMTP验证的用户名

-xp 表示SMTP验证的密码(注意,这个密码貌似有限制,例如我用d!5neyland就不能被正确识别)

-m 表示邮件的内容

修改commands.cfg

vim /usr/local/nagios/etc/objects/commands.cfg

# 'notify-host-by-email' command definition

define command{

        command_name    notify-host-by-email

        command_line    /usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\nHost: $HOSTNAME$\nState: $HOSTSTATE$\nAddress: $HOSTADDRESS$

\nInfo: $HOSTOUTPUT$\n\nDate/Time: $LONGDATETIME$\n" | /usr/local/bin/sendEmail -f nagios@domain.com -t $CONTACTEMAIL$ -s mail.domain.com -u "** $NOTIFICATIONTYPE$ Host Alert: $HOSTNAM

E$ is $HOSTSTATE$ **" $CONTACTEMAIL$ -xu nagios -xp password

        }

# 'notify-service-by-email' command definition

define command{

        command_name    notify-service-by-email

        command_line    /usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\n\nService: $SERVICEDESC$\nHost: $HOSTALIAS$\nAddress: $HOSTA

DDRESS$\nState: $SERVICESTATE$\n\nDate/Time: $LONGDATETIME$\n\nAdditional Info:\n\n$SERVICEOUTPUT$\n" | /usr/local/bin/sendEmail -f nagios@domain.com -t $CONTACTEMAIL$ -s mail.domain.com -u "** $NOTIFIC

ATIONTYPE$ Service Alert: $HOSTALIAS$/$SERVICEDESC$ is $SERVICESTATE$ **" $CONTACTEMAIL$ -xu nagios -xp password

        }

保存并重启nagios服务。

以下在被监控机上安装:

可参考此文档:

NRPE.pdf

建立nagios用户和组:

# useradd nagios

创建存放软件的目录:

# mkdir /software

# cd /softeware

下载nagios-plugins-2.0.3.tar.gz和nrpe-2.15.tar.gz

# wget http://nagios-plugins.org/download/nagios-plugins-2.0.3.tar.gz

# wget http://sourceforge.net/projects/nagios/files/nrpe-2.x/nrpe-2.15/nrpe-2.15.tar.gz/download

安装nagios-plugins-2.0.3.tar.gz

# tar -zxvf nagios-plugins-2.0.3.tar.gz

# cd nagios-plugins-2.0.3

# ./configure

# make && make install

授权:

# chown nagios.nagios /usr/local/nagios/

# chown -R nagios.nagios /usr/local/nagios/libexec/

安装xinetd:

# yum install xinetd

安装nrpe-2.15.tar.gz

# tar -zxvf nrpe-2.15.tar.gz

# cd nrpe-2.15/

# ./configure

# make all

Install the NRPE plugin (for testing), daemon, and sample daemon config file.

# make install-plugin

# make install-daemon

# make install-daemon-config

Install the NRPE daemon as a service under xinetd.

# make install-xinetd

添加nagios监控服务器地址到/etc/xinetd.d/nrpe

only_from       = 127.0.0.1  12.92.117.15

追加nrpe服务到/etc/services

# echo "nrpe            5666/tcp                # nrpe" >> /etc/services

重启xinetd服务:

# /etc/init.d/xinetd restart

查看有没有起来:

# netstat -at|grep nrpe            //如下已启动

tcp        0      0 *:nrpe                      *:*                         LISTEN

因为刚才在/etc/xinetd.d/nrpe中添加了可以连接到本机的地址,一个是本机地址127.0.0.1,另一个是182.92.187.15,现在测试一下能够正常连接:

在被监控机上:

# /usr/local/nagios/libexec/check_nrpe -H 127.0.0.1

NRPE v2.15        //如果出现了版本信息表示成功。

在监控端机器上:

# /usr/local/nagios/libexec/check_nrpe -H www.iub.com.sg

NRPE v2.15        //如果出现了版本信息表示成功。

开放被监控机的5666端口:

iptables -I RH-Firewall-1-INPUT -p tcp -m tcp –dport 5666 -j ACCEPT

在监控端服务器上:

# cd /usr/local/nagios/etc/objects/

添加以下到commands.cfg

define command{

                command_name    check_nrpe

                command_line    $USER1$/check_nrpe -H $HOSTADDRESS$ -c $ARG1$

        }

创建文件www.domain.com.cfg,添加以下内容:

define host{

                use             linux-server

                host_name       www.domain.com

                alias           www.domain.com

                address         115.11.115.222

        }

define service{

                use                     generic-service

                host_name               www.domain.com

                service_description     CPU Load

                check_command           check_nrpe!check_load

        }

添加此配置文件到nagios.cfg

# vim /usr/local/nagios/etc/nagios.cfg

加入:

cfg_file=/usr/local/nagios/etc/objects/www.domain.com.cfg

重启nagios服务,登录web界面查看。

待续...
